Innova IGS 540

A rendering error occurred: Loading CSS chunk 225 failed. (/dist/GEHC/Project/GEHC/static/css/LinkListingModule.aa8f104a.chunk.css).
Innova™ IGS 540 girişimsel onkoloji prosedürleri için en büyük görüntüleme alanlarından birini içeren, zemine monte bir sistemdir.

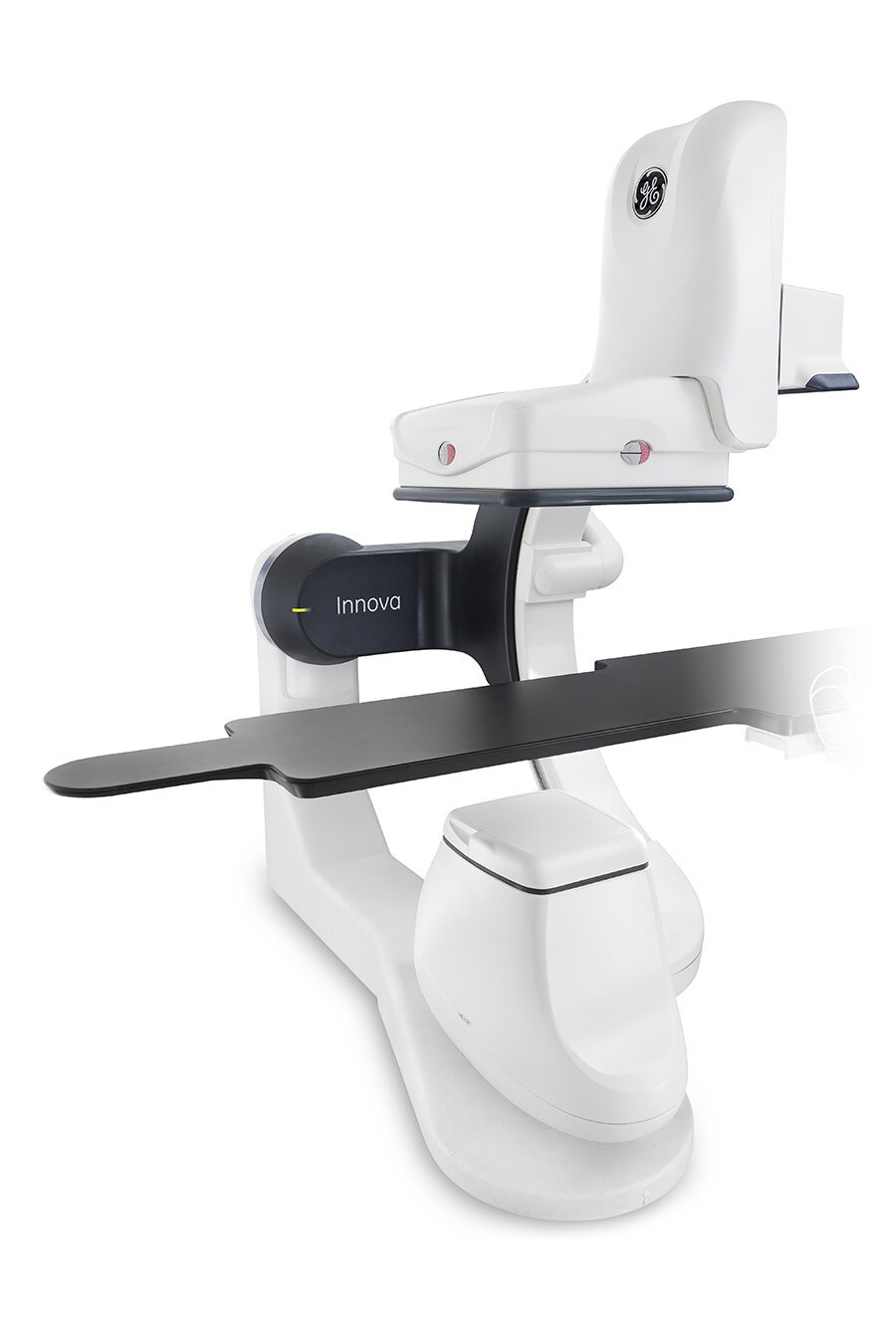

igs-for-interventional-oncology-innova-igs-540-overview

See. Your Way. Clearly.

With its 41 cm (16.1 in) square detector, Innova IGS 540 provides extensive body coverage for peripheral and abdominal procedures.

The Innova IGS 540 was designed from the ground up to provide the image clarity you need while helping you keep dose as low as possible. It includes features like Dose Personalization1, which gives you the tools to choose from up to five2 automatic exposure preferences for your system. You can also modify any of these preferences in any clinical protocol, to enable multi-procedure, multi-user customization, and thus support well-informed decisions.

Powered with dedicated advanced applications, you can plan, guide and assess procedures with confidence.

  • FlightPlan for Liver helps you plan your liver embolization in three intuitive steps and automatically highlight vessels traveling from the catheter tip to the hyper-vascular tumor.

  • Innova TrackVision helps you can plan and guide needle procedures by identifying one or multiple needle trajectories for your case and overlay these virtual trajectories over the live fluoroscopic images - so you know where you are in delicate

A rendering error occurred: Loading CSS chunk 225 failed. (/dist/GEHC/Project/GEHC/static/css/LinkListingModule.aa8f104a.chunk.css).

Gallery

  • GE Healthcare Innova IGS 540

  • Innova IGS 540

Tour

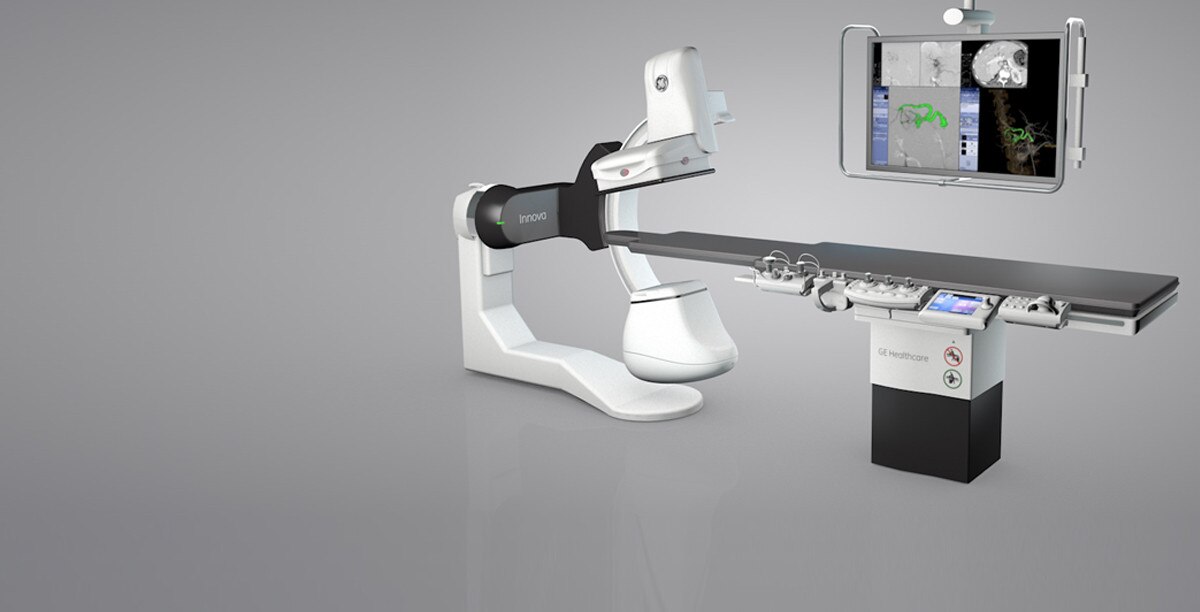

hotspot tours-innova igs 540-gehc-innova-540-tour_spotlight_active_jpg

  • Gantry angulations

    3-axis C-arm makes complex angulations easy to achieve.

  • Head access

    Comfortable access to the head of the patient with the offset C-arm and L-positioner.

  • InnovaBreeze*

    Follow the contrast bolus in real time using variable panning speed control with an easy workflow.

  • Lateral imaging

    Easy transition from AP to lateral using flexible offset C-arm and L-positioner.

  • Off-set C-arm

    Maximum positioning flexibility and excellent patient access for coverage from groin to head.

Benefits

  • Excellent anatomical coverage

    The Innova IGS 540 with its 41 x 41 cm (16.1 in) square flat-panel digital detector boasts one of the largest fields of view for vascular and interventional imaging. It can cover large anatomies, such as both legs simultaneously, designed for fewer runs than smaller detectors, enabling efficient use of contrast and dose.

  • Superb image quality with high Detective Quantum Efficiency (DQE)

    The proprietary angiography flat-panel detector offers one of the industry’s highest ratings for Detective Quantum Efficiency (DQE), a parameter internationally acknowledged as an index of detector performance in contrast- and dose-limited imaging performed in clinical studies. High DQE enables better-quality images at the same dose, or the same quality image at a lower dose.

  • Lower dose by design

    GE designs systems from the ground up with the tried and trusted GE imaging chain, optimized to provide the image clarity you need while keeping dose as low as possible. Our dose-reduction features empower you to easily optimize and personalize dose settings from the tableside, while maintaining clinical details you need to make well-informed decisions. But improving dose management takes a strategy – what we call the GE Blueprint. It includes low-dose imaging technologies for minimally invasive procedures, but also considers the people, culture and processes around them.
    Learn more.

  • Simple, centralized, automated controls

    Control your system and images with integrated, intuitive tableside controls. With simple menus, the Central touchscreen lets you control most system functions, configure the system, modify imaging parameters, control your large display monitor, and manipulate advanced applications – all at the tableside. The comfortable, easy-to-grasp control knob makes it easy to pan the table, position the gantry, and perform procedures.

  • All-in-one large display monitor

    The full-color 142 cm (56 in) diagonal 8 megapixel medical-grade large display lets you view multiple images from multiple sources. Get up to 120 customized layouts, easily changeable at tableside with the Central touchscreen. Zoom in comfortably without loss of detail or pixilation to get the clinical focus you need.

Clinical Applications

Procedures

Related Courses

Related Content

Related Products

In clinical use, the results of the application of dose reduction techniques will vary depending on the clinical task, patient size, anatomical location and clinical practice. The Interventional radiologist, assisted by a physicist as necessary has to determine the appropriate settings for each specific clinical task.

1 – Option

2 – Except in following countries: Germany, Switzerland, Austria, New Zealand where that list is limited to 3 preferences

3 - For XA modality series, Integrated Registration currently supports only 3D X-Ray angiography images (stored as CT Image Storage DICOM objects) acquired with GE equipment and reconstructed with the 3DXR application.
